BlackVue Rear Camera Connecting Cable (20ft / 49ft / 4.9ft) | BlackVue | Dash Cam Accessories | BlackboxMyCar
SKU BV-Coaxial-6m

BlackVue Rear Camera Connecting Cable (6M/15M/1.5M)

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
Low stock
Availability:
Out of stock
$16.99 - $16.99
$16.99
$16.99
$16.99 - $26.99
$16.99
Best Price Guaranteed
Select Model & Length
Every order includes:

Chat with an expert

Talk to a dash cam expert before you order.

Contact an expert

BlackVue Rear and Interior Camera Connecting Cables

Replace a damaged BlackVue camera lead or choose a length that fits your installation. This listing has four options: 6m high-bandwidth coaxial, 15m standard coaxial, 6m analog, and 1.5m standard coaxial for a nearby interior camera. One selected cable is supplied.

Four Cable Options

Rear or Interior

6m / 15m / 1.5m

Model-Specific Fit

Replacement Lead

Coaxial cables for compatible rear and cabin cameras

Our current 6m coaxial option is the high-bandwidth cable for the Elite series, including the BlackVue Elite 8 2CH. For the BlackVue DR770X 2CH Series II, also select this 6m high-bandwidth option. BlackboxMyCar lists it for the earlier DR970X, DR770X, DR900, DR750 and DR650 coaxial systems. Match both camera models and the connectors before replacing a lead.

The 15m standard coaxial option suits compatible DR970/770 and earlier coaxial systems when a longer route is needed, using the original DR770X or DR970X family. The 1.5m option is a short standard coaxial lead for compatible interior IR cameras mounted near the front unit. Neither option is a substitute for Elite’s high-bandwidth cable.

Cable compatibility does not make every rear camera interchangeable. Keep the front and secondary camera pairing supported by BlackVue. These leads are also not the waterproof external cable used by Truck camera systems.

BlackVue coaxial camera connecting cable with small coaxial plugs

Analog connections and a route that avoids cable damage

The 6m analog option is for compatible DR590W/DR590X cameras, including the BlackVue DR590X 2CH Plus. Its plugs differ from the small coaxial connectors. Do not force one cable type into the other camera’s port, and do not substitute a general-purpose audio lead.

Measure the route along the trim before ordering, including enough slack for a moving hatch. Fit and test the cable before securing the trim. Avoid sharp bends, pinched sections and airbag deployment paths. Pulling on a connector or splicing the lead can damage the connection.

If you are moving the rear camera, check its bracket and adhesive separately. Compare the appropriate BlackVue replacement mounts or BlackVue mounting tape; neither is included with this cable. The linked rear-camera installation guide explains routing through a vehicle’s interior.

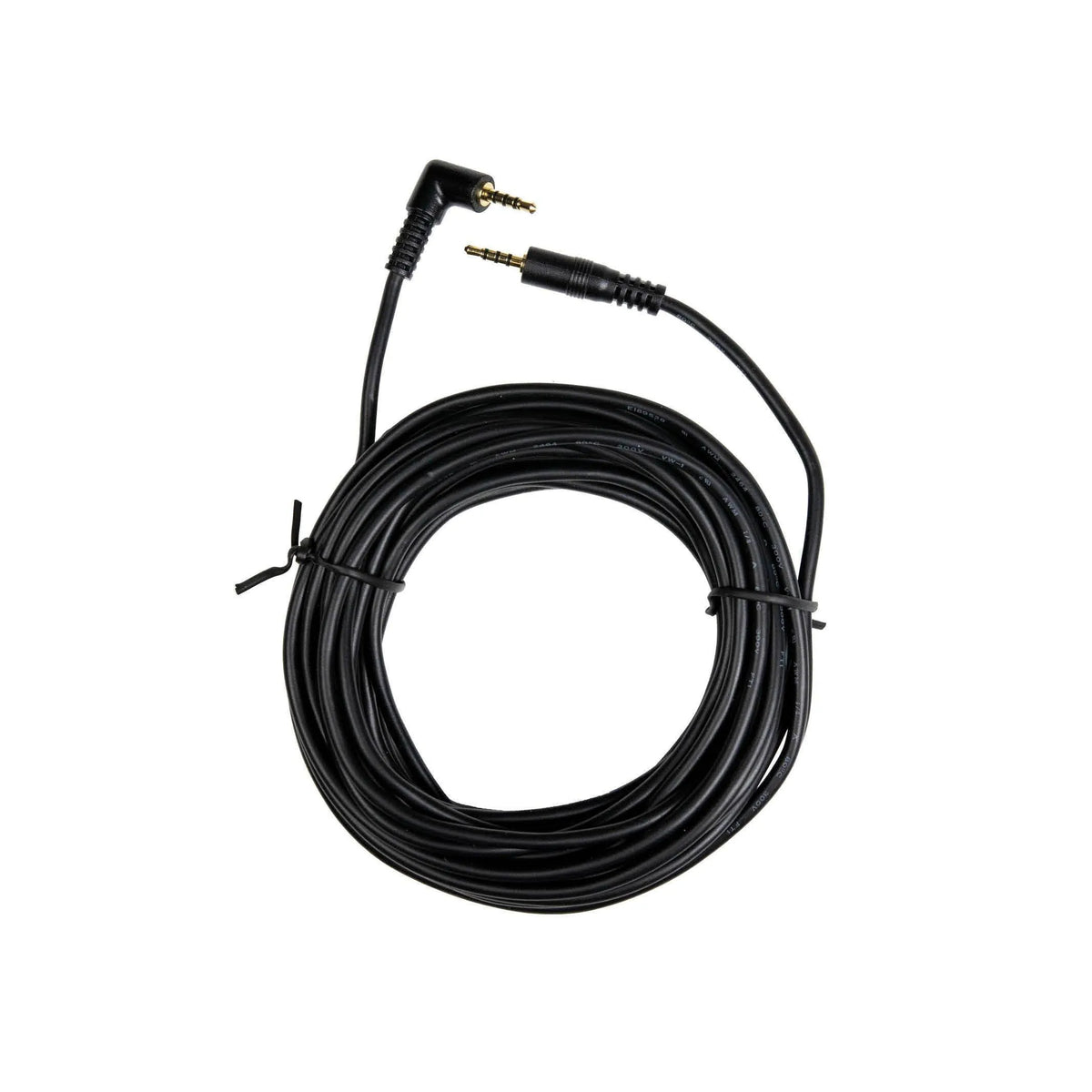

BlackVue analog rear camera connecting cable with straight and right-angle plugs
What's Included
  • 1 BlackVue camera connecting cable in the selected type and length
Specifications
What's Included One selected cable
Warranty 2-year manufacturer warranty, honored by BlackboxMyCar
6m coaxial option Current high-bandwidth Elite cable; also listed by BlackboxMyCar for DR970X / DR770X / DR900 / DR750 / DR650 coaxial systems
15m coaxial option Standard coaxial for compatible DR970/770 and earlier coaxial cameras; not Elite
6m analog option DR590W / DR590X / DR590X Plus compatible analog systems
1.5m coaxial option Standard short lead for compatible interior IR cameras; not Elite
Length conversions 6m ≈ 19.7ft; 15m ≈ 49.2ft; 1.5m ≈ 4.9ft
Connection purpose Front dash cam to compatible secondary camera
Excluded connections Vehicle power, generic USB/audio, and waterproof external Truck-camera cable
Frequently Asked Questions

Which cable does an Elite camera need?

Elite cameras require the high-bandwidth coaxial connection. Our current 6m coaxial option is the Elite-compatible version. Do not choose the 15m or 1.5m standard coaxial options for an Elite system.

Is the 15m option an extension I add to my existing cable?

No. It replaces the full connecting lead. It is 15m in total, not 15m of added length, and is for compatible standard coaxial systems.

What is the 1.5m option for?

It is a short standard coaxial cable for a compatible interior IR camera located near the front dash cam. It is not the Elite cabin camera cable.

Which option fits DR590W or DR590X?

Select the 6m analog option for the supported DR590W/DR590X family, including DR590X Plus. The coaxial options use a different connection.

Can I use any rear camera once the cable fits?

No. The front and secondary cameras still need to be a supported pairing. A cable does not convert an incompatible camera or add recording channels to an unsupported model.

Can I splice the cable or use an audio extension?

Use the correct complete camera lead. Splicing or using a general audio/USB extension can cause signal or connection problems. Check the route and required length before fitting.

Is this the waterproof cable for an external Truck camera?

No. External Truck cameras use a different waterproof cable arrangement. Confirm the exact external camera and cable model before ordering.

Does it include a camera, bracket or mounting tape?

No. One selected cable is included. The camera, bracket and adhesive are separate items.

What warranty coverage applies?

This accessory has a two-year BlackVue manufacturer warranty, which BlackboxMyCar honors. Our default retailer coverage is six months unless otherwise stated; it does not shorten this product’s two-year manufacturer coverage.
