SKU VF-HK3

VIOFO Mini USB HK3 3-Wire Hardwire Kit

Original price $17.99 - Original price $17.99
Original price
$17.99 USD
$17.99 - $17.99
Current price $17.99 USD
Best Price Guaranteed

Overview

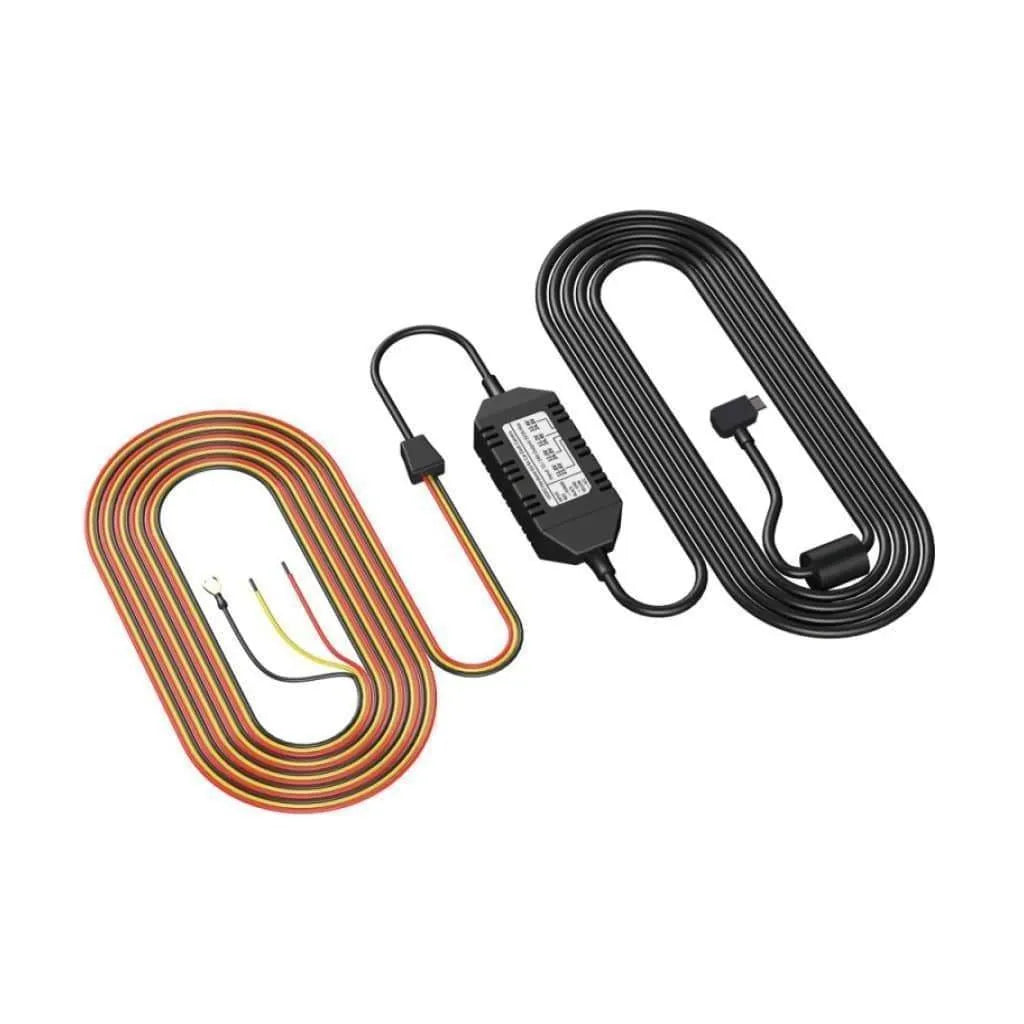

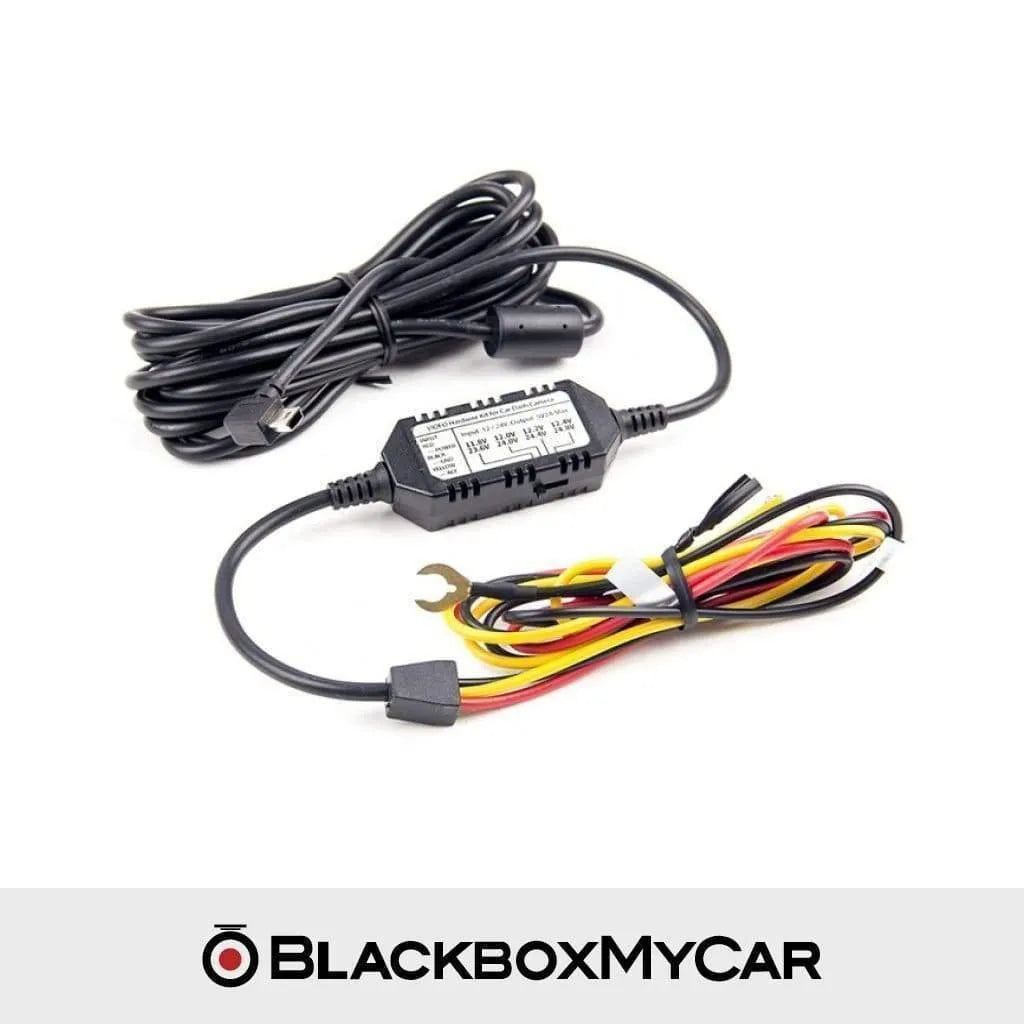

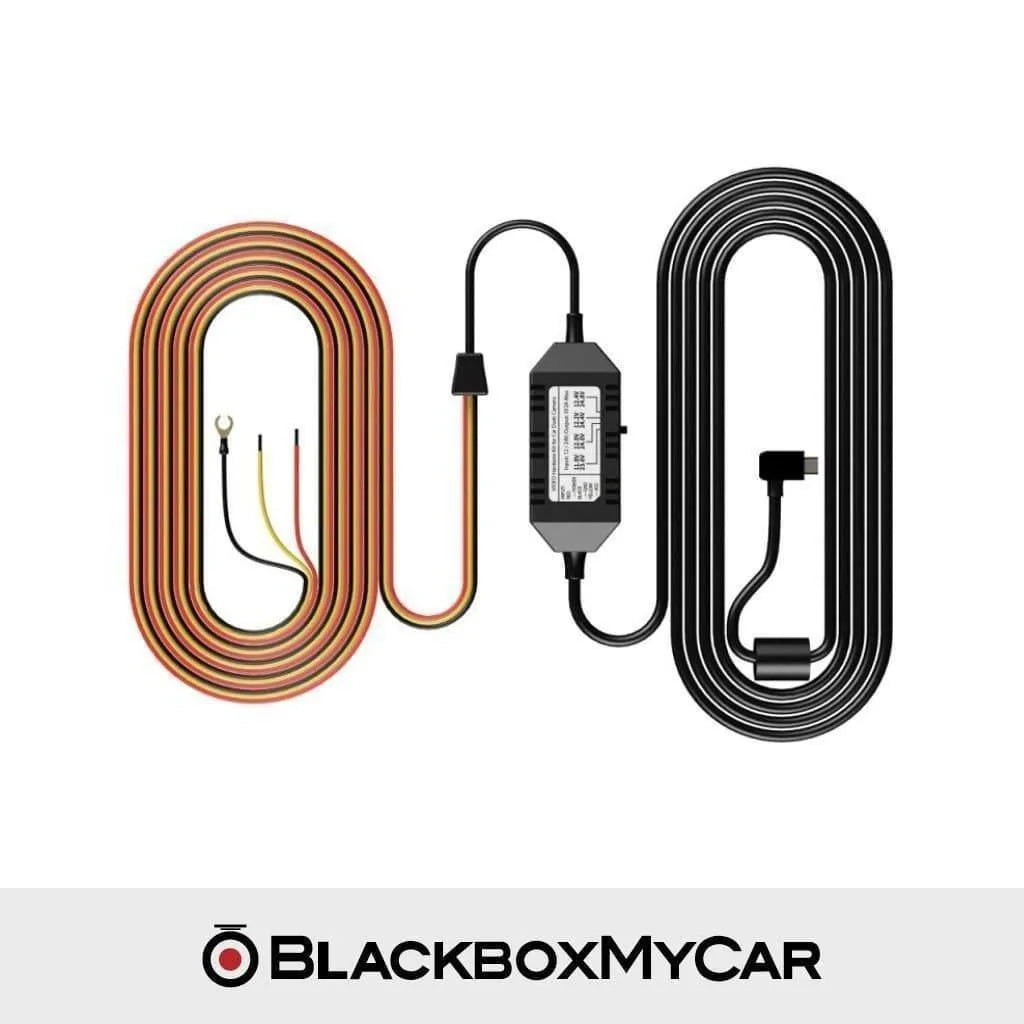

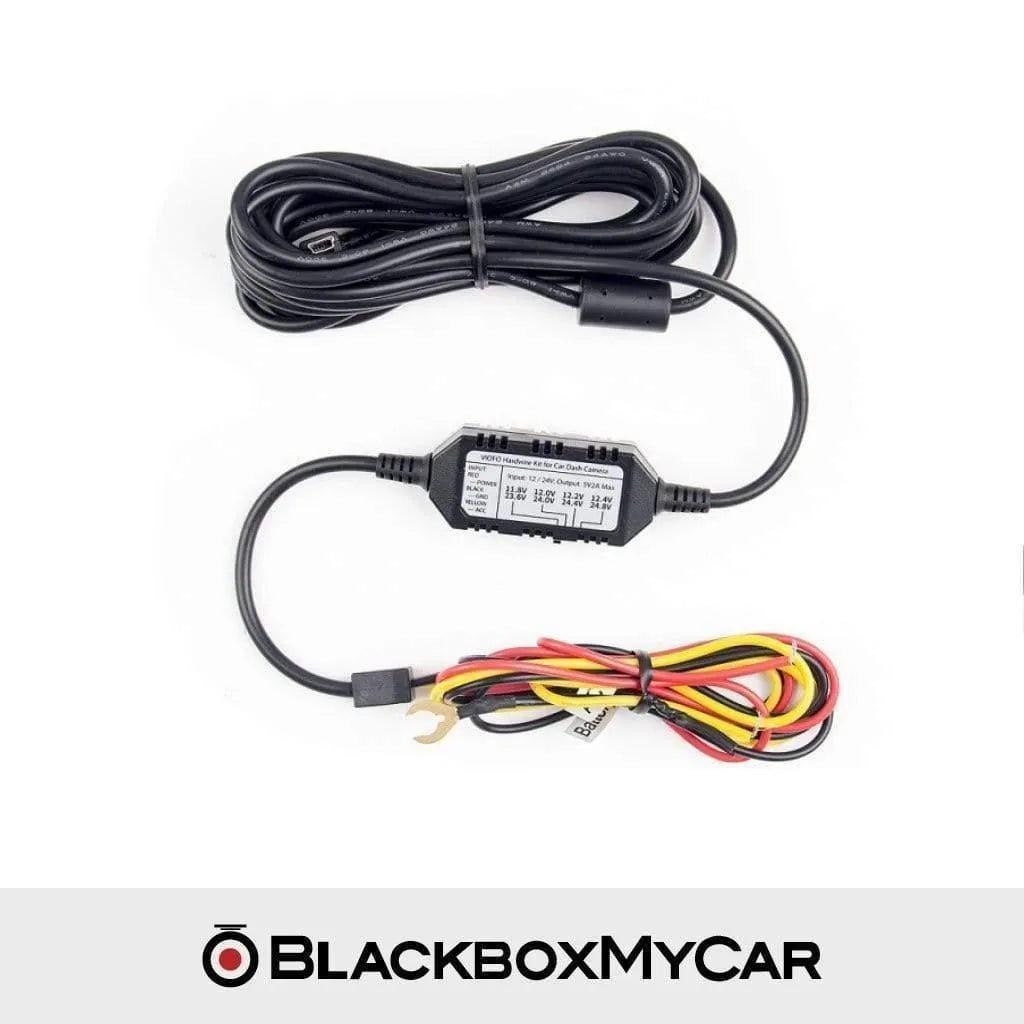

VIOFO 3 Wire ACC Hardwire Kit

The VIOFO 3-Wire ACC Hardwiring Kit is specifically designed for VIOFO dash cams, specifically all VIOFO A129 and A119 V3.

This hardwiring kit is not compatible with the A119 Mini 2.

For more detailed instructions on how to specifically use this Hardwiring kit, check out our VIOFO 3-Wire ACC Hardwiring Kit Guide. We also have a general Fusebox Hardwiring Guide available.

NOTE: The types of add a fuse that we provide, if selected, are: Low profile, Mini, Micro 2, and ATO.

For all the tools you need to properly hardwire your dash cam into your vehicle, we would recommend purchasing the Essential BlackboxMyCar Install Package.

Product Details

This 3-Wire ACC Hardwiring Kit supports 3 parking recording modes: auto-event detection, time-lapse, and low bitrate recording. With ACC detection, the dash cam will switch to parking mode automatically if the vehicle engine is shut off. The dash cam will switch into normal recording when the vehicle engine is on. Length of cable: 4 meters / 13 feet.

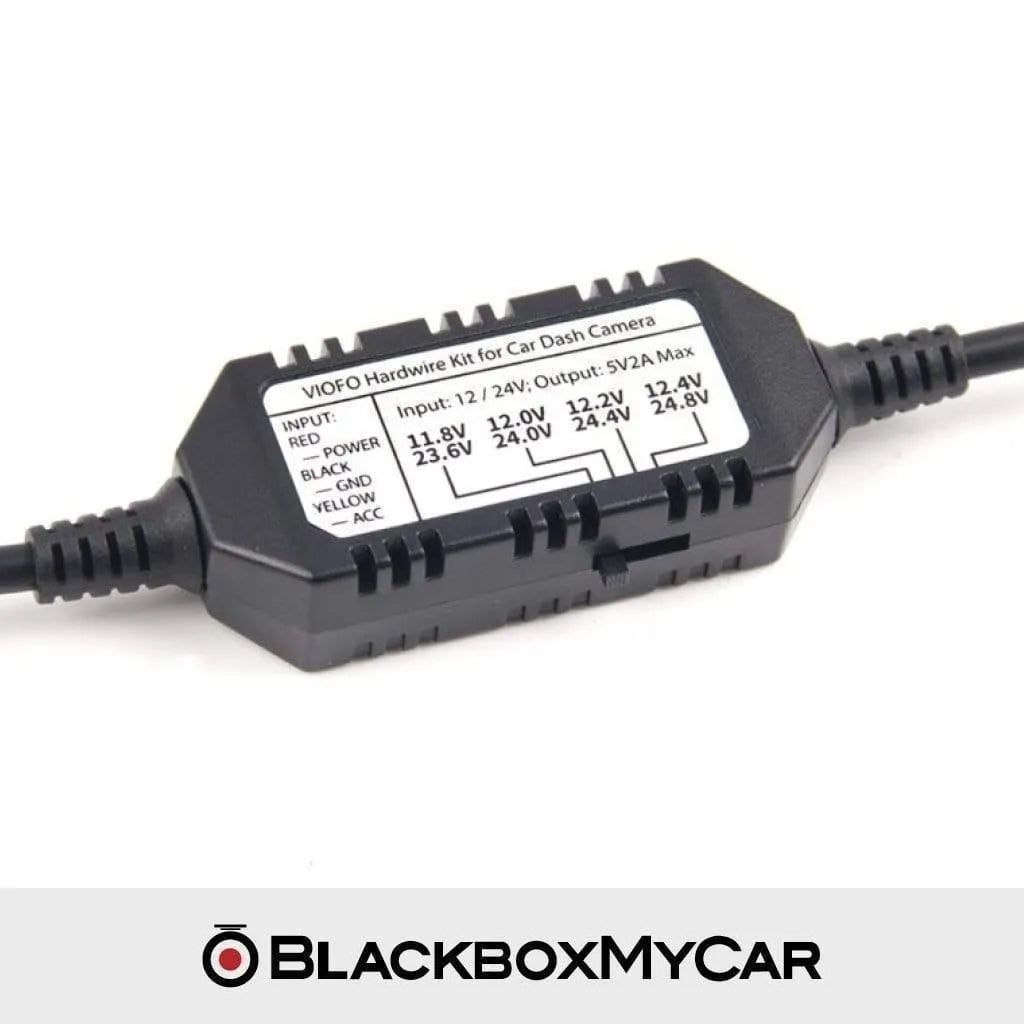

Adjustable voltage low voltage protection function, it will cut power to your dash camera when detect the vehicle battery voltage is below the set number. It has four voltage options 11.8V, 12V, 12,2V, 12.4V. 24V battery compatible.

If you have any further questions, our product experts are here to help.

FAQ

What is Parking Mode?

Parking mode is offered on most of the dash cams available at BlackboxMyCar. While it is important to protect your vehicle while driving, it is just as important to have your vehicle protected while it is parked. When the dash cam is in parking mode, footage will only be saved when there is an impact and/or motion. Parking mode can be enabled with a hardwiring kit or a battery pack.

For more information on parking mode, click here.

What is a Hardwire Kit?

A hardwiring kit enables parking mode. It allows your dash cam to remain powered on even when the vehicle's ignition is turned off. Installation is a breeze as you will only need to find an accessory fuse, constant fuse, and a grounding point.

What is a Battery Pack?

Most customers purchase the battery pack to avoid using the vehicle’s battery to power their dash cam. The battery pack is charged by either being hardwired into an accessory fuse or by being plugged into one of the vehicle's 12-volt cigarette sockets. We recommend the hardwiring the battery pack as it charges the battery pack quicker.

For more information on Battery Packs, click here.

How much footage will my memory card store?

On average, a 2-channel dash cam writes 16GB/hour and a 1-channel dash cam writes about 8GB/hour.

Click here to see all the memory cards we carry.

Do I need a Rear Camera?

Accidents or events don't always happen at the front of the vehicle! Having a rear camera provides coverage for any events or accidents that may happen at the rear of the vehicle.

For more information on rear view cameras, click here.

Do I need a IR Rear Camera?

An IR camera is designed to record the interior of the vehicle in low light conditions. This option is very popular among rideshare drivers.

For more information on why rideshare drivers need dash cams, click here.

What is a CPL filter?

A CPL filter attaches to the dash cam lens to eliminate lens flares, light reflections, and windshield glares.

For more information on CPL filters, click here.

Where do I find the Latest Firmware?

Find the latest firmware and all downloadable content here.
